12mm Versapanel Cement Bonded Particle Board - 1200mm x 2400mm

12mm Versapanel Cement Bonded Particle Board - 1200mm x 2400mm
Guide Price
12mm Versapanel Cement Bonded Particle Board - 1200mm x 2400mm
Guide Price
£45.61
£54.73 inc VAT
  • Product Code: F735
  • Stock:2 - 3 Days
  • Model: 1200mm x 2400mm - 2.88m2
  • Weight: 44.93kg

Related Products

Brand: Ceresit Stock: 9999
Delivery Time: 3 - 5 days
Ceresit CT74 is used for creating thin-layer stone texture renders in External Wall Insulation Systems and on traditional renders, on concrete substra..
£63.00
£75.60 inc VAT
Ceresit CT79 Impactum Elastomeric Render - 1.5mm grain | Stone Texture
Guide Price
Brand: Ceresit Stock: 9999
Delivery Time: 5 - 7 days
Ceresit CT179 Impactum Render is a ready to use, tough stone texture decorative 1.5mm grain silicone render for indoor and outdoor applications, where..
Guide Price: £88.52
£106.22 inc VAT
Brand: Ceresit Stock: 9999
Delivery Time: 7 - 10 days
Ceresit CT34 Smooth Mineral Render is used for plastering external surfaces, as a mineral filler for smooth surfaces, and also used to repairing tradi..
£38.00
£45.60 inc VAT
Brand: Ceresit Stock: 9999
Delivery Time: 5 - 7 days
Ceresit CT77 Mosaic Render is used for applying decorative colourful plasters to traditional plasters, concrete substrates, gypsum substrates and chip..
£75.00
£90.00 inc VAT
Ceresit CT136 Dry Dash Receiver - 25kg
Guide Price
Brand: Ceresit Stock: 9999
Delivery Time: 2 - 3 Days
Ceresit CT136 Dry Dash Receiver is a polymer cement based render suitable for use as a top coat for External Thermal Insulation Composite Systems (ETI..

12mm Versapanel Cement Bonded Particle Board - 1200mm x 2400mm

Length: 2400mm
Width: 1200mm
Height: 12mm
Density: 1300kg/m3
Weight/m2: 15.6kg
Weight: 44.93kg
Thermal Conductivity: 0.026W/mK
R-Value: 0.46m2K/W
Compressive Strength: 150kPa
Fire Rating (Reaction to Fire): B(Class 0)
Fire Protection (Resistance to Fire): 60

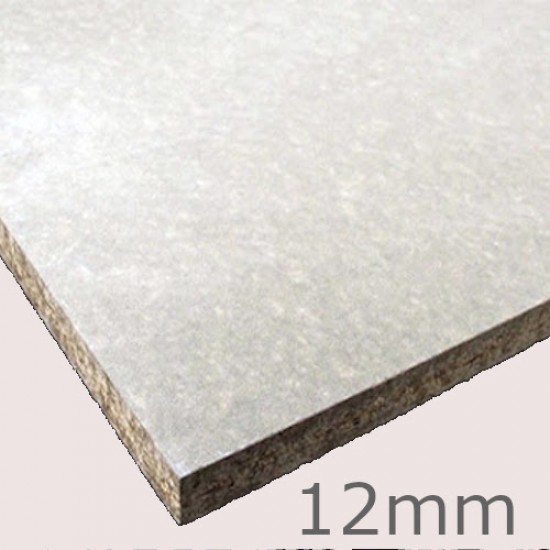

12mm Versapanel is a durable and flexible cement bonded particle board that meets the requirements of moisture tolerance and fire resistance. This board is manufactured from wood particles and cement and has no asbestos or any other hazardous volatiles. Versapanel has a smooth grey surface and is available in two basic finishes: unsanded - suitable for many decorative finishes and calibrated - sanded on both sides. The panel is easy to use and can be nailed, screwed, drilled, routed, sanded, planed or sawn. Versapanel can be used above 18 metres because of its higher mechanical strength and without the need for additional and often expensive specialist fixings. Versapanel delivers exceptional performance in the presence of moisture as cut edges do not require sealing to prevent degradation. Due to relative high density, Versapanel provides a high mass exterior lining to optimise acoustic performance of the building envelope.

CHARACTERISTICS

  • Available in smooth or textured face,
  • Highly economical,
  • Easy to install and versatile - can be screwed, stapled, nailed or bonded,
  • Durable, flexible and cost-effective,
  • Offers a level of acoustic insulation,
  • Suitable for timber and steel frame systems,
  • Fire rated and non-toxic under fire,
  • Impact resistant,
  • Vermin and rot resistant,
  • Great dimensional stability,
  • CE marked.

APPLICATION

  • New build and renovation,
  • As a carrier board in various cladding systems, including brick slips systems, terracotta cladding systems and insulated render systems.
  • As an external cladding board,
  • As a structural member,
  • On internal walls and partitions,

INSTALLATION

  • Brick bond pattern should be used for fixing the boards. Avoid 4 way joints.
  • Use stainless steel self-countersinking and self-drilling screw fixings.
  • Fixings should be placed at 200mm centres at the perimeter of the board and 300mm centres on intermediate support.
  • Expansion joints should be 4mm in single frame assembly and 10mm at the joint of two frame assemblies.
  • The mounted boards should be acclimatised prior to further work.

CERTIFICATION

  • Tested to BS 476-6 & BS 476-7 classified as Class 0 building board with a Class 1 surface spread of flame.
  • European classification to EN 13501-1: B1 B-s1,d0
