Beads, Tracks and Profiles

Types of Beads, Tracks and Profiles

  • Base tracks,
  • Stop Beads,
  • Corner profiles,
  • Frameseal beads,
  • Render stop beads,
  • Movement beads,
  • Expansion beads,
  • Bellcast beads

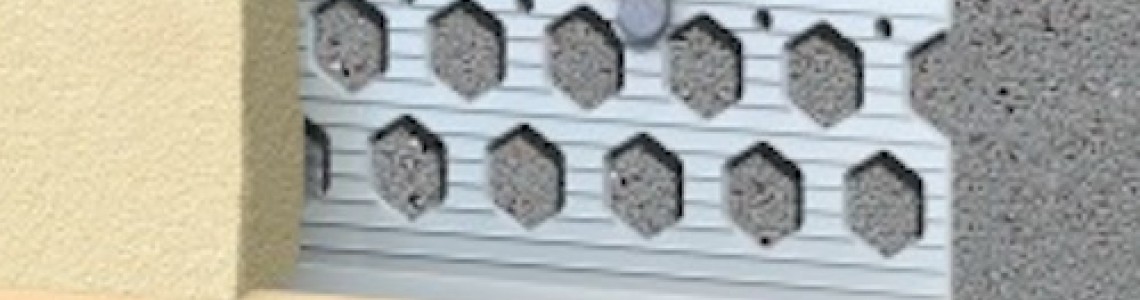

Aluminium Base tracks usually has a box profile and holds the external insulation perfectly. They are available in standard widths to match the width of the insulation boards. They can be interconnected lengthwise using matching PVC clips. Base tracks are fixed along the top of the damp proof course. PVC clips with mesh can be mounted on the edge of the base track - mesh to hold render over the insulation layer. These PVC clips have an angled drip edge. Base tracks are also available in galvanised steel and stainless steel.

  • Bridging the damp proof course with base track fixings should be avoided.
  • Avoid small cuts and always allow for a 2mm gap between sections to accommodate thermal expansion.
  • Any gaps between the substrate and the base track should be packed out with mortar or suitable sealant to level the track and to prevent any future system failure.
  • Avoid warping the base track by fixing into an uneven wall surface.

Aluminium Stop tracks and stop beads are used at the end of external insulation and render systems. The Stop tracks and beads are affixed vertically along a wall boundary and around openings such as doors, windows or pipework.

Rendering is helped by a broad assortment of PVC profiles for external wall insulation systems: PVC clips and profiles with mesh, stop beads, corner beads, movement beads, expansion beads and drip beads.

Stop beads can be used in dividing the wall surface into sections, along a wall boundary and around openings such as doors, windows or to create a break of work to be completed in sections. Stop beads may also come with attached mesh.

Corner beads are used to create a straight edge at wall corners and in reveals, and available with or without a detachable plastic nose.

Mesh wing corner beads are used where corners or reveals are to be formed without a protruding edge. The fibreglass mesh wing will be completely embedded into the render for maximum strength on system stress points.

Movement beads are used to express movement joints in the substrate. They can also be used to break up large panel sizes and to indicate the boundary lines of attached properties. The expansion joints shouldn't be covered with insulation.

When the structure expands, the Expansion joint profiles and corner expansion joint profiles allow the external insulation and render systems to move elastically.

CHOOSE MANUFACTURERS or scroll down to see products (show)

Brand: Wemico Model: 90602
Delivery Time: In stock, 1-2 days
Aluminium Base Track Profile is a box shaped base profile for 20mm thermal insulation board for thermal insulation systems with render. These profiles can be powder coated to any standard RAL colour...
£7.00
£8.40 inc VAT
6mm PVC Base Profile with Mesh Wing - length 2m (pack of 15)
Guide Price
Brand: Wemico Model: 37500
Delivery Time: In stock, 1-2 days
6mm PVC Base Profile with Mesh Wing to  use between DPC and insulation systems and for 6mm render thicknesses. It can also be used in conjunction with a PVC angle section as a two ..
Guide Price: £216.78
£260.14 inc VAT
Brand: Wemico Model: 2143
Delivery Time: In stock, 1-2 days
30mm Stainless Steel Base Track Profile for 30mm thermal insulation board for external wall insulation systems. Larger sizes can be made to order. Connectors and render clips are also available to sui..
£172.54
£207.05 inc VAT
20mm Aluminium Vented Base Track Profile - length 2.5m.
Guide Price
Brand: Wemico Model: 90902
Delivery Time: In stock, 1-2 days
20mm Aluminium Vented Base Track Profile for external insulation systems with render that matches the new regulations that demand different air flow rates within cavities of steel frame and timbe..
Guide Price: £12.40
£14.88 inc VAT
25mm Galvanised Steel System Base Bead - length 2.5m
Guide Price
Brand: Wemico Model: WE625N
Delivery Time: In stock, 1-2 days
25mm Galvanised Steel System Base Profile with optional PVC nosing which will provide additional protection against abrasion and corrosion.Insulation board size: 15mmDrip section width: 10mmOverall sy..
Guide Price: £9.74
£11.69 inc VAT
Brand: Wemico Model: 95503
Delivery Time: In stock, 1-2 days
30mm Aluminium Flexible System Starter Track Profile - Slit the back fixing leg where necessary and then bend profile around the curve of the external wall. Insulation thickness: 30mm, Clear width: 33..
£119.13
£142.96 inc VAT
Model: 6mm
Delivery Time: In stock, 1-2 days
6mm Expantion Corner Joint Profile with soft PVC centre section for insulation systems, with alkali-resistant glassfibre mesh. Movement: +/-5mm. This profile is recommended for vertical use only...
£100.17
£120.20 inc VAT
Brand: Wemico Model: 6mm
Delivery Time: In stock, 1-2 days
6mm Expantion Joint Profile with soft PVC centre section for insulation systems, with alkali-resistant glassfibre mesh. Movement: +/-5mm. This profile is recommended for vertical use only...
£109.19
£131.03 inc VAT
6mm Stainless Steel Full System Horizontal Joint Clip- length 2.5m (pack of 10).
Guide Price
Brand: Wemico Model: 2152
Delivery Time: In stock, 1-2 days
6mm Stainless Steel Full System Horizontal Joint Clip profile to be used where a movement space designed for the structural stability of the external Thermal Insulation Systems. Mounted on the st..
Guide Price: £258.41
£310.09 inc VAT
Brand: Wemico Model: P4
Delivery Time: In stock, 1-2 days
4mm PVC Render Stop Bead with 25mm wing used on door and window openings also at base of wall and ceiling level. It is designed to deliver a clean edge, protect and finish plaster and render edges. Co..
£41.15
£49.38 inc VAT
Brand: Wemico Model: D10
Delivery Time: In stock, 1-2 days
10mm PVC Drip Beads are used for external wall insulation rendering applications to provide impact and rainwater protection. They are installed above the damp proof courses and on window and door..
£67.81
£81.37 inc VAT
600mm x 2500mm Galvanised Steel Rib Lath Sheet
Guide Price
Model: 600mm x 2500mm
Delivery Time: In stock, 1-2 days
600x2500mm Galvanised Rib Lath is stiffened by longitudinal ribs, for use on ceilings and wall rendering applications and anti-crack control. Made from galvanised steel to EN 10346 DX51D Z275 or grade..
Guide Price: £13.48
£16.18 inc VAT
Showing 1 to 12 of 54 (5 Pages)
